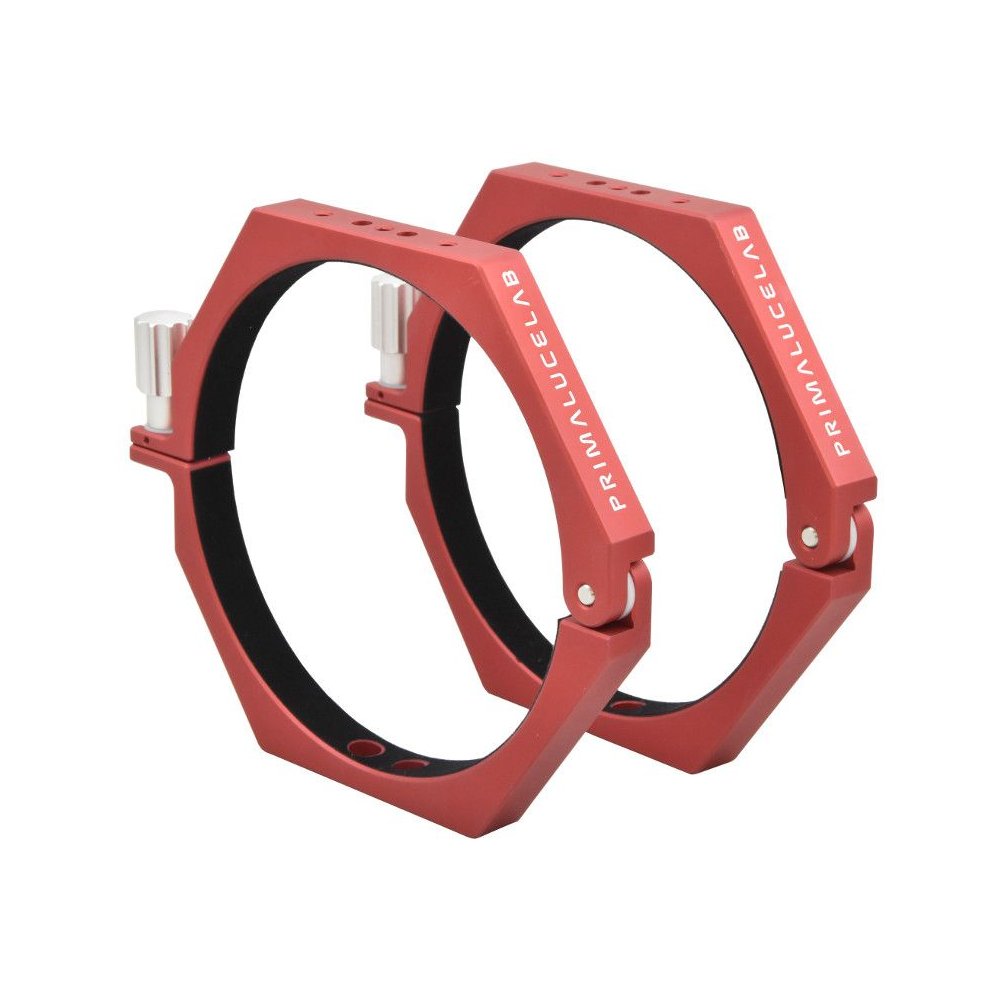

155mm PLUS support rings

FAST SHIPPING with express courier

155mm PLUS support rings

PLLANSU155P

155mm PLUS support rings can be used with all telescopes with 155mm diameter tube like Takahashi FS-152 and TOA-130 telescopes (or other telescopes brands with tube approximately 155mm in diameter) to expand the possibilities of use. In this way, for example, you can install both above and below the optical tube our PLUS plates or even guide rings. Like all the other elements of the PLUS series, these rings are made with high mechanical precision (built with CNC machines from aluminum block) and specially designed to enable you to easily install other mechanical elements such as plates, guide rings or dovetail clamps. Weight: 0.8 kg.

Pay in a single solution or over 3 installments of €100,82*
* Pay in 3 installments is a service offered by Paypal, if available in your state. You can select to pay in 3 installments in Paypal.
Availability: In Stock


€302.46
VAT excluded

If you pay by bank transfer 293,39 €

Pay in a single solution or over 3 installments of €100,82*
* Pay in 3 installments is a service offered by Paypal, if available in your state. You can select to pay in 3 installments in Paypal.



155mm PLUS support rings can be used with all telescopes with 155mm diameter tube like Takahashi FS-152 and TOA-130 telescopes (or other telescopes brands with tube approximately 155mm in diameter) to expand the possibilities of use. In this way, for example, you can install both above and below the optical tube our PLUS plates or even guide rings.



155mm PLUS support rings



The 155mm PLUS support rings are part of our system PLUS (Prima Luce Universal System) which includes a large variety of support rings, plates, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical system of support, depending on the application that you want to achieve. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.

For this application, we designed many elements, including the 155mm PLUS support rings. Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.



Thanks to the particular design, the 155mm PLUS support rings are equipped with holes (above and below each ring) to permit the attachment of:

  1. Vixen or Losmandy plates below the rings to install the telescope on any mount
  2. PLUS guide rings (each ring can be fixed on the support ring with 2 screws)
  3. Vixen or Losmandy plates above the rings to increase the rigidity of the mechanical system and enable to install other accessories, such as dovetail clamps with guide rings to precisely adjust the position of the guide telescope.


If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed we have provided a series of central slots that allow, for example, to fix on these support rings plate or guide rings through a screw.



155mm PLUS support rings
