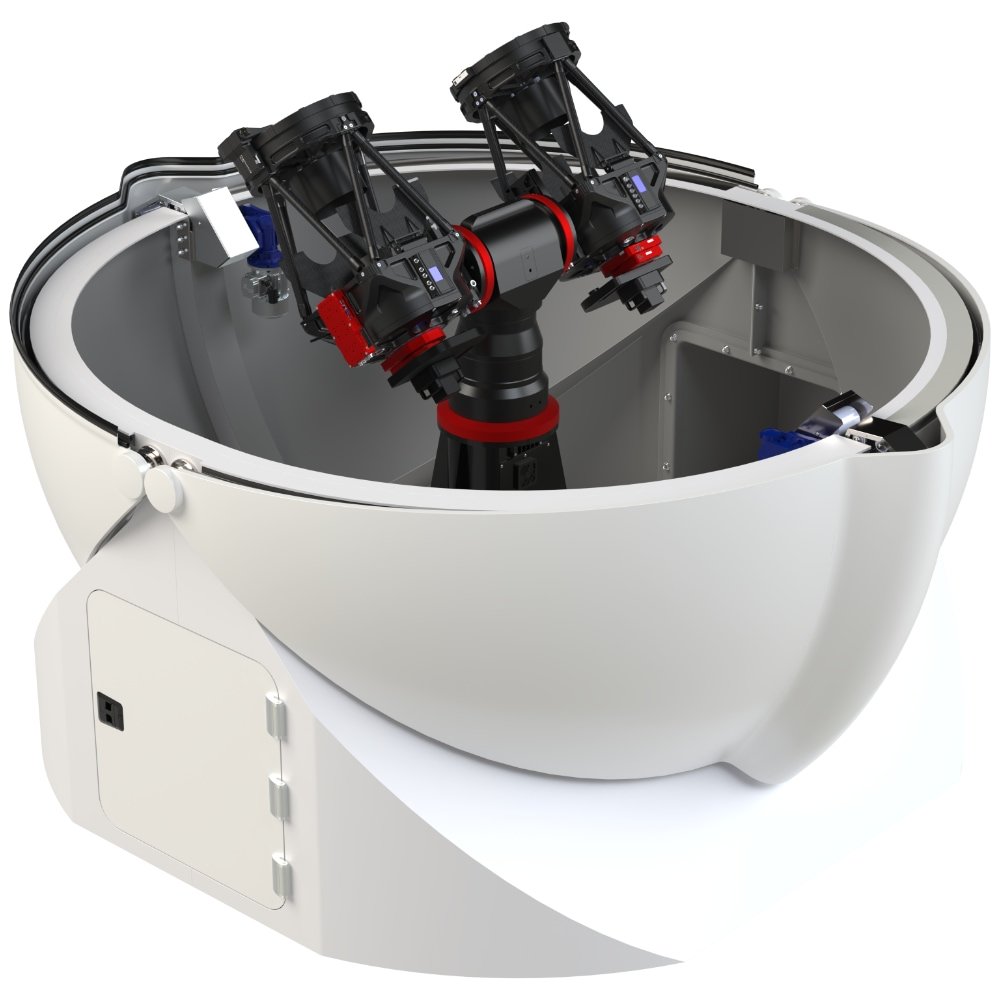

BINO-SSA Observatory Station with large FoV and dome

A modern use of optical telescopes is to create a network of optical systems with large field of view for surveying and tracking space debris population. This Observatory Station is optimized for GEO and MEO survey operations and the imaging train, composed of cameras and filter wheels with filters  for different bands, are able to study potential different object’s albedos.

BINO-SSA optical Observatory Station with large FoV and dome - main features:

- Dual telescope with fast optics and large corrected field of view
- Large aperture and high load capacity ESATTO robotic focusers
- Dual cooled camera
- Dual motorized filter wheel with filters
- Fast slewing mount with high precision and load capacity
- Equatorial pier
- EAGLE control unit to remotely control and power all the devices
- Off axis clamp allows to regulate the field of view of the secondary telescope with 2 positions: parallel and offset
- Fully opening dome





The 4° x 2.3° field of view is customisable and it is obtained with a special clamp allowing the installation of a secondary telescope with an offset in respect to the primary, creating a configuration that is optimized for broad sky coverage. The special clamp also allows the installation of the 2 systems in parallel: this way making it possible to increase the signal to noise ratio when using narrowband filters.

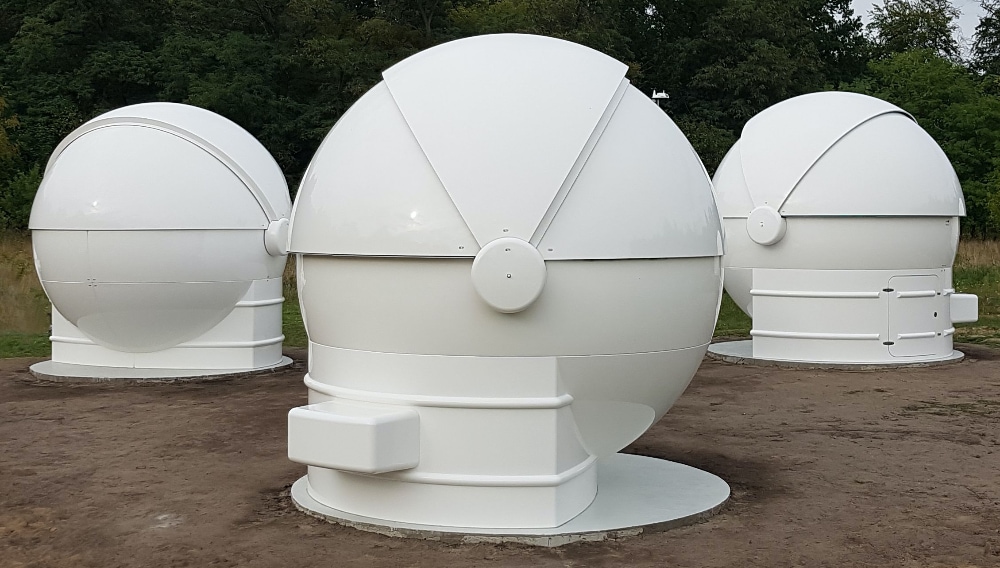

BINO-SSA Observatory Station - ScopeDome Clamshell 3M:

ScopeDome Clamshell 3M is the perfect telescope dome to track satellites, space debris or quick sky surveys, because when in use it completely opens and doesn't request for the dome shutter to be synchronized with the telescope position. This way the telescope is able to quickly slew not only to astronomical objects but also satellites or space debris. The fast shutter drive allows almost immediate observation and a special feature of the dome is the ability to open only selected shutter, which allows additional protection of the telescope against strong winds. ScopeDome Clamshell 3M dome includes motors and remote control electronics.

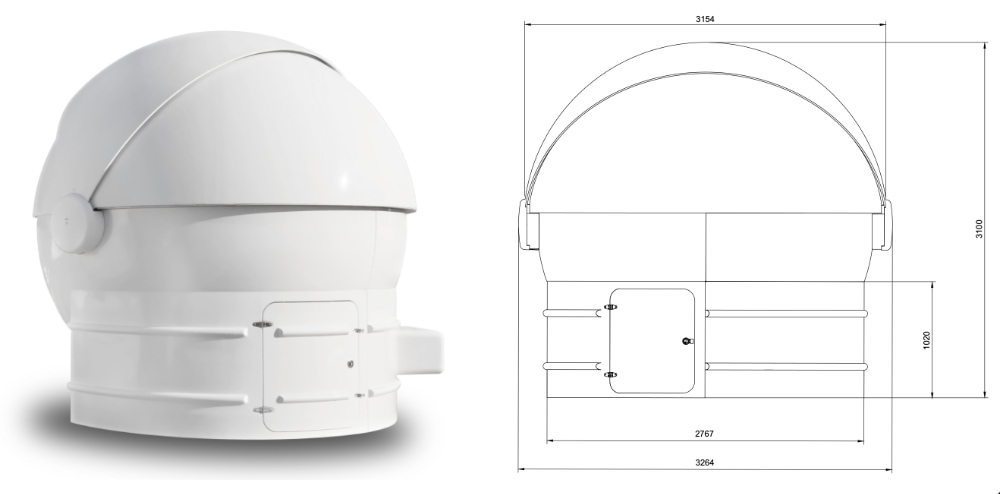

ScopeDome Clamshell 3M dome - main features:

- diameter: 3.0 m
- heigh: 3.1 m
- weight: 300 kg
- number of shutters: 3
- opening time: 80s
- drive: six engines 250W
- automation: ScopeDome Arduino Card
- software: ScopeDome Arduino Driver, ASCOM, Windows 10
- equipment bay: 77 x 35 x39 cm
- door: 77 x 59 cm

All ScopeDome are "first-time" assembled and tested in ScopeDome factory and then dismantled and carefully prepared for worldwide shipment.

Need help in observatory design and construction?

Thanks to our deep understanding of all the technical specifications and the functions needed for a complete observatory to be really operational, we offer a special service for people (both amateurs and institutions) that want a complete observatory for their hobby, didactic use or work. Thanks to the fact that PrimaLuceLab not only sell all the parts needed for a complete observatory but also design and develops new solutions, our technical team can design and personalize all the instruments (telescope, pier, observatory and control computer) needed to give you a complete system matching your requests. If you're interested, please contact us.
