QHYCCD QHY695A monochrome camera

Product code: QHY695A

Be the first to review this product

Quick Overview

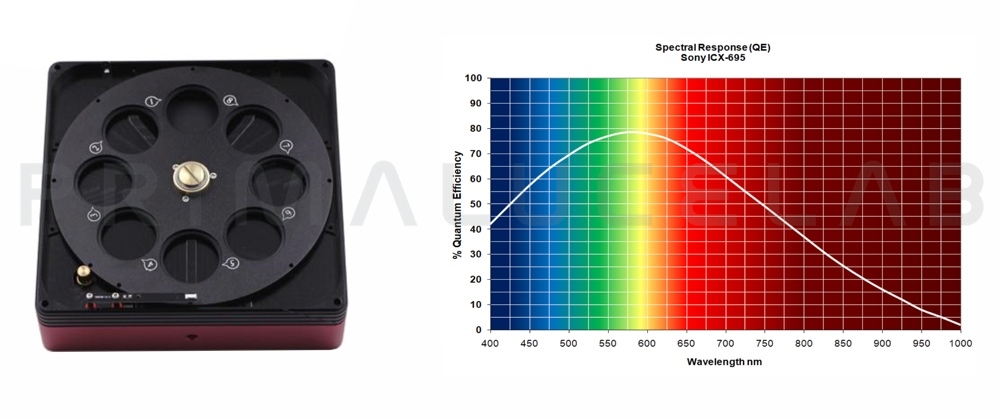

The QHY695A is an all-in-one camera that includes Sony ICX695 ExView II CCD sensor (a 1-inch, 6 megapixel sensor with a peak QE close to 80%) and a motorized filter wheel for 7 36mm filters. This camera can be directly connected to the QHYOAG-S off axis guider. With the two-stage TEC reducing the sensor temperature to -40C below ambient, and the extremely low thermal noise of this CCD, this camera produces an exceptionally clean image.

Availability: Order in Italy headquarters

22% tax incl
if you pay by bank transfer €3,176.75

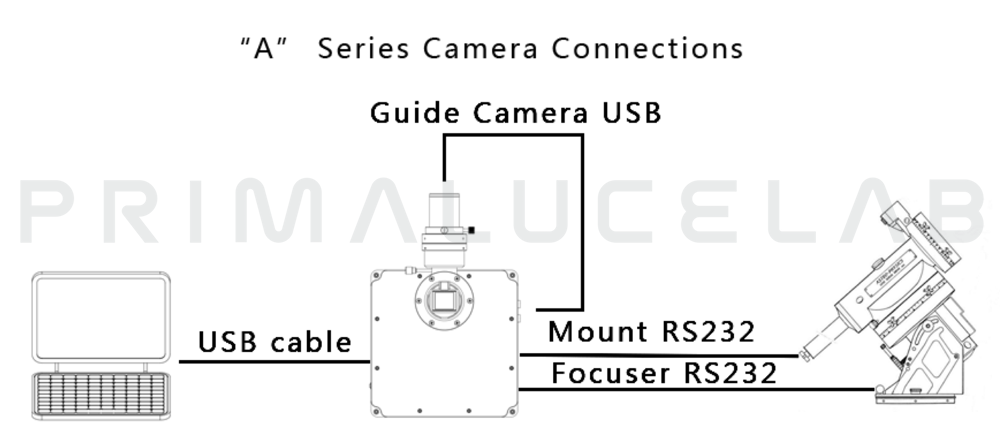

Internal USB hub

In addition to the filter wheel and OAG, the "A" series camera also offers an internal USB HUB(2.0) providing two USB host ports and a USB to dual RS232 converter. A guiding camera, mount and electric focuser can be connected directly to this camera instead of the computer to reduce cable clutter and the chance of signal loss due to the long cables. A single USB cable controls all of the peripherals.

QHYCCD QHY695A monochrome camera

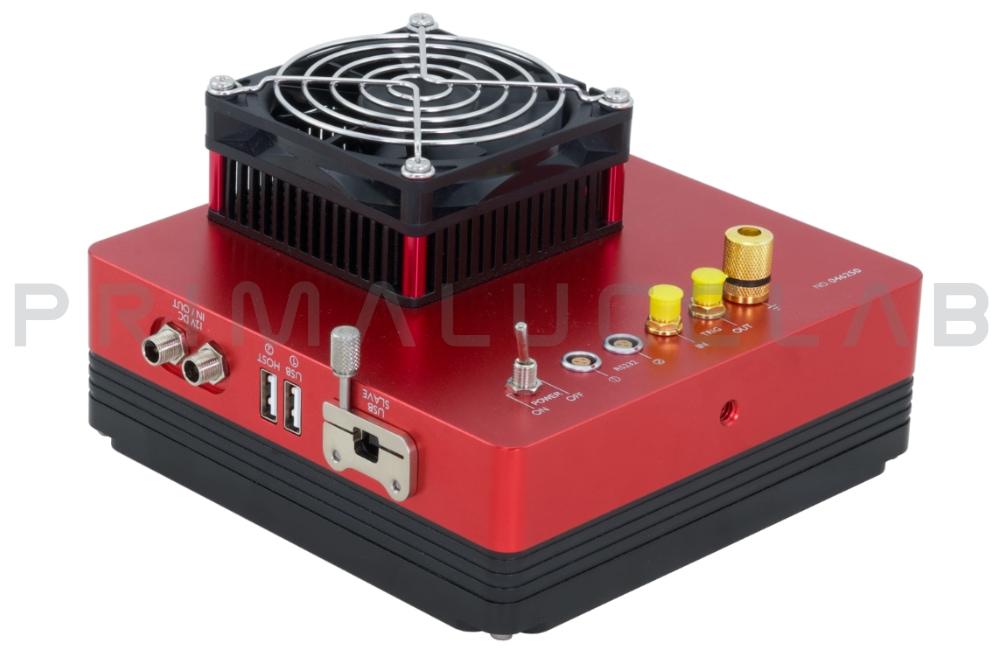

Single 12V power socket

This camera uses a single 12V IN power port. The power socket is threaded for a solid connection that will not accidentally disconnect. There is another socket connected in parallel with the input that can be used to supply 12V OUT to other devices.

QHYCCD QHY695A monochrome camera

Butterfly Shutter - long life and uniform illumination

Although the sensor has electronic shutter, this camera also has a mechanical shutter. This makes it possible to automatically take dark frames, unattended. The shutter is directly driven by a motor with no other moving parts.

QHYCCD QHY695A monochrome camera

QHYCCD QHY695A monochrome camera: scope of delivery

  • QHY695A camera with motorized filter wheel for 7 36mm filters
  • T2-50,8mm adapter
  • 220V AC adapter
  • 12V power cable with cigarette plug
  • USB cable

Technical specifications

Type: Camera CMOS raffreddata
Sensor Monochrome
Sensor Sony ICX695
Resolution 2758 x 2208
Sensor dimensions (mm) 14.6mm x 12.8mm
Sensor diagonal (mm) 19.4
Pixels dimensions (µm) 4.54 micron
A/D converter 16 bit
Cooling -40°C rispetto a T ambientale
Readout Noise (e-) 15-20 e-
ST4 integrated autoguide port No
Telescope interface Filetto T femmina (42x0,75)
Connection to PC USB 2.0
Power External 12V 4A
Backfocus (mm) 33mm
Weight (gr.) 1550 gr.
