Celestron RASA Rowe-Ackermann Schmidt 14" astrograph with Losmandy bar

Product code: CE91077

Be the first to review this product

Quick Overview

Celestron RASA Rowe-Ackermann Schmidt 8" astrograph with Losmandy bar offers a breakthrough 36 cm aperture, f/2.2 optical system designed for professional applications that require both a wide field of view and resolution, such as space surveillance and other scientific applications. It offers unprecedented value in aperture, speed, field of view, and optical performance. The RASA design has a convenient external prime-focus image capture location with a flat focal plane, providing small spot sizes to the edge of a wide field. The result is images free of optical defects like field curvature, off-axis coma, and astigmatism. 3 years of warranty!

Availability: Available

Details

The 36 cm aperture version is the largest RASA Celestron manufactures; it is the biggest and fastest (f/2.2) optical instrument of its kind available “off-the-shelf.” Unlike most telescopes, which only focus visible light (400-700 nm), the RASA 36 cm focuses an extended spectral range (400-900 nm), allowing a brighter signal to be detected by a camera sensor. The RASA 36 cm also features a redesigned focus system, which ensures easy and stable focusing. RASA 36 cm’s ample back-focus distance (77.5 mm) accommodates a wide variety of imaging sensors. A custom camera adapter can be added for a field of view up to 4.4 degrees.

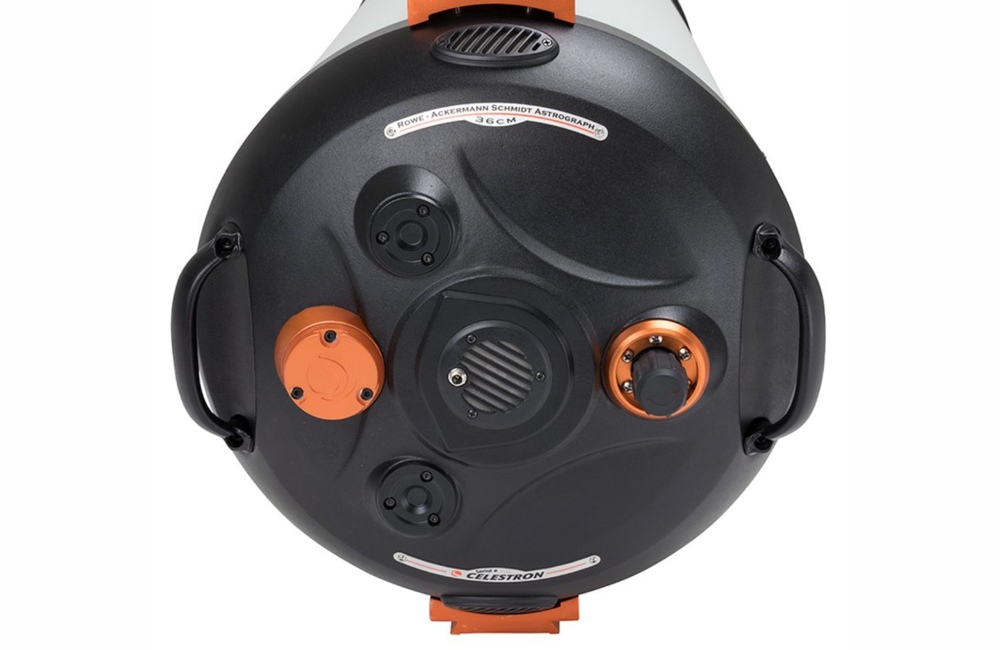

Celestron RASA Rowe-Ackermann Schmidt 14

4-element lens group utilizes extra-low dispersion (ED) glass for images free of false color, coma, and field curvature, the Rowe-Ackermann Schmidt Astrograph 14" is also an excellent choice for advanced astroimaging. 60 mm optimized image circle maintains pinpoint stars to the far corners of the largest available sensors.

Celestron RASA Rowe-Ackermann Schmidt 14

Important freight requirement – RASA 36 is a professional-caliber, high-precision instrument. It is manufactured and aligned to an exacting standard to provide exceptional optical performance. The telescope is packaged to ensure it retains alignment and resulting performance during transport. However, due to the weight, size, and known stresses of shipping via parcel service, the ideal transport is a palletized delivery.

Celestron RASA Rowe-Ackermann Schmidt 14" astrograph with Losmandy bar: scope of delivery

- Celestron Rowe-Ackermann 8" optical tube

- Ultra-Stable Focus System – six precision sealed ball bearings virtually eliminate image shift.

- Integrated air cooling system –12V DC MagLev fan reduces cooldown time and provides optimal air flow while filtering out dust.

- Internal filter mount – seamlessly accommodates a Light Pollution Imaging Filter into the optical path.

- Adapter for C-thread camera

- Adapter for T2-thread camera

- Losmandy style Losmandy bar

Technical specifications

Optical Design Rowe-Ackermann
Optics Primario sferico, con lastra correttrice e gruppo spianatore
Diameter (mm) 356mm
Tube diameter 400mm
Focal Length (mm) 790mm
Focal Ratio f/2.2
Field flattener/corrector Included and not removable
Optical Tube Alluminio
Obstruction 44%
Focuser Interno (spostamento del primario)
Eyepiece holder No
Weight 34 Kg
Hard/soft case No
